4" Aluminum In-Line Net System for Adjustable Basketball

Description

The In-Line Basketball Adjustable Aluminum Net System offers a unique space-saving approach to maximizing court space and functionality. By seamlessly integrating an adjustable net pole with a basketball pole, this system enables the effortless conversion of a single-sport court into a multi-sport facility.

The net system, designed to work with all Douglas® D-Pro™ MAX Adjustable and F-5™ Fixed Basketball Systems, will also work with most other brands.

KEY BENEFITS

• Multi-Sport Capability: Easily accommodates various sports, including pickleball, tennis, badminton, and volleyball, with simple net height adjustments.
• Efficient Space Utilization: The in-line design maximizes court area, making it ideal for smaller spaces or multi-purpose areas.
• Easy Net Adjustments: The user-friendly design allows for quick setup and effortless net height modifications.
• Durable Construction: The robust aluminum frame and weather-resistant powder-coated finish ensure long-lasting performance.
• Aesthetic Appeal: The sleek design complements any court environment, enhancing its overall appearance.

QUICK SPECIFICATIONS

• Net System adjusts from Pickleball to Volleyball height
• 4″ SQ extruded structural aluminum
• Black baked-on polyester powder coat finish
• Rugged, smooth operating net tensioning reel
• Removable handle for safety and convenience
• 34″ high net is available in (4) standard sizes
• Net is constructed from 3 mm, 1-3/4″ sq polyethylene netting
• The system includes all adjustable hardware, net, and ground sleeve.
• For indoor and outdoor use
• 5-Year Limited Warranty
• Basketball systems are sold separately

Aluminum Pole

This solid post is made in the USA and is constructed of 4″ square extruded structural aluminum with excellent bend resistance and is 100% rustproof. The post and steel hardware components are finished with a black, baked-on polyester powder coat finish. This strong finish adds resistance to chipping and the ultimate weather protection against the elements.

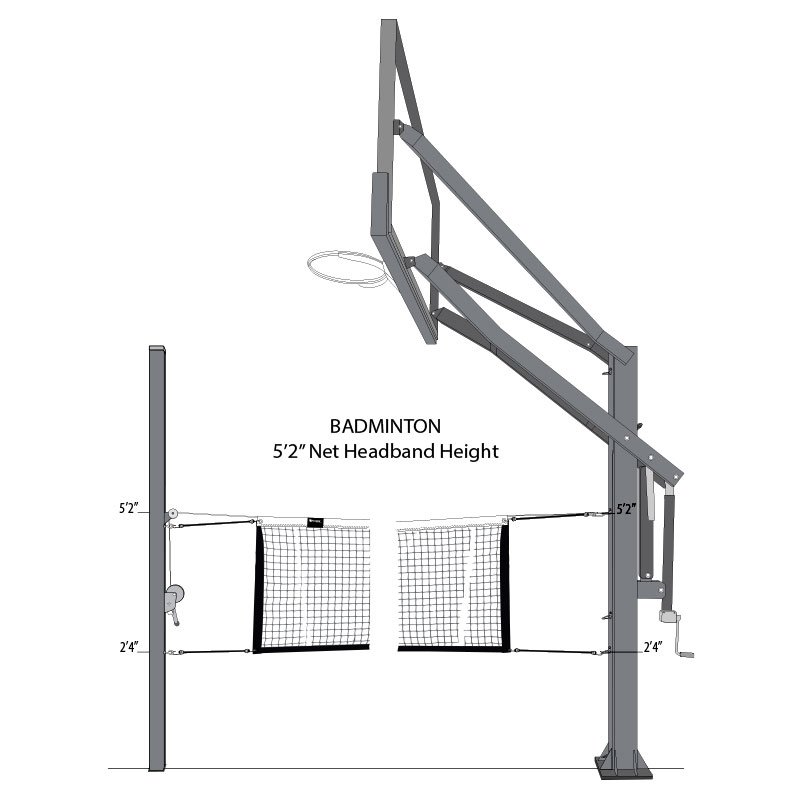

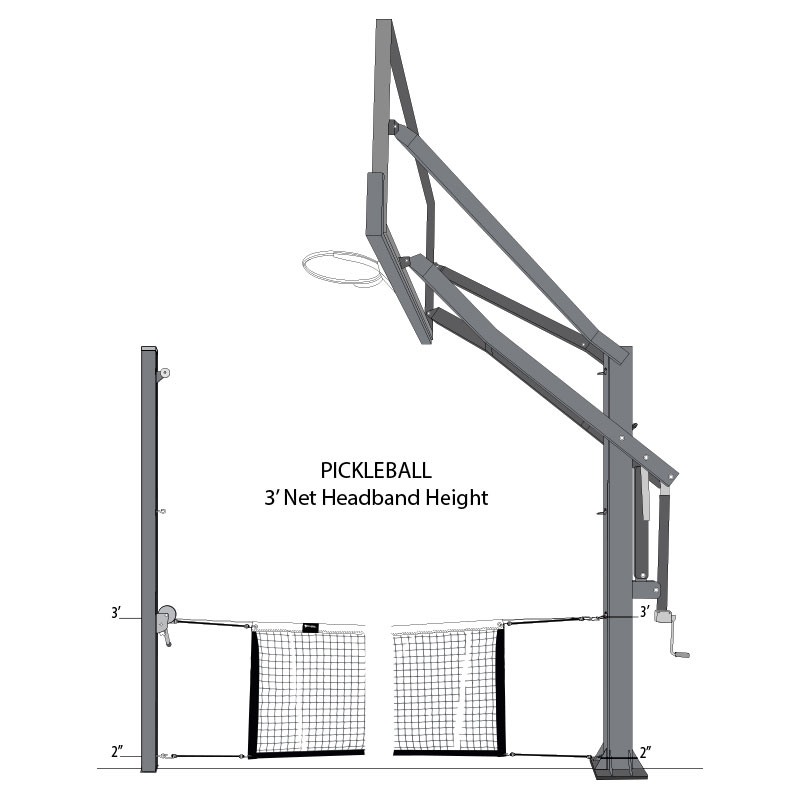

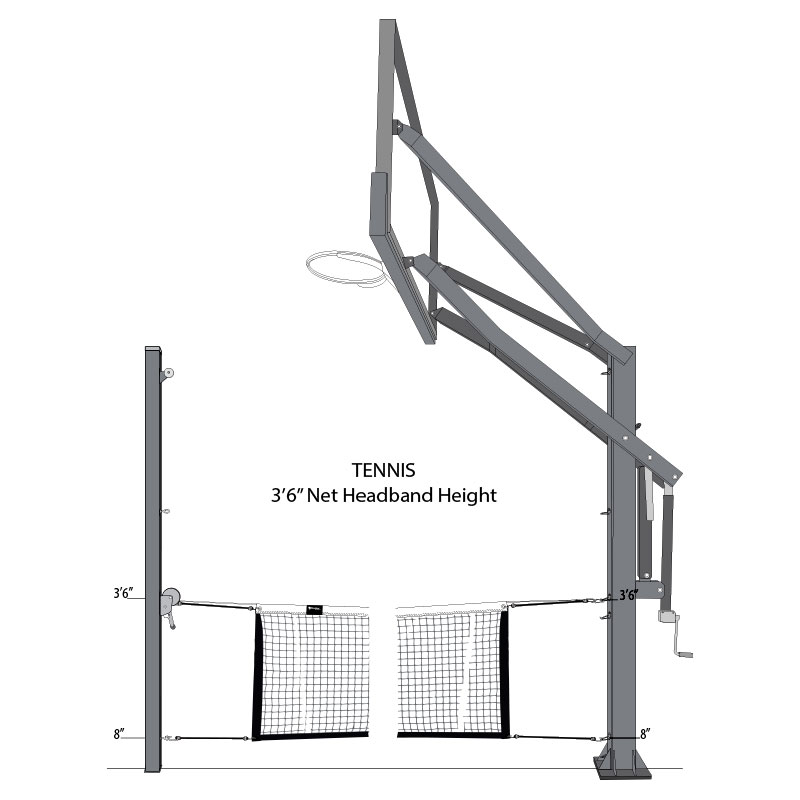

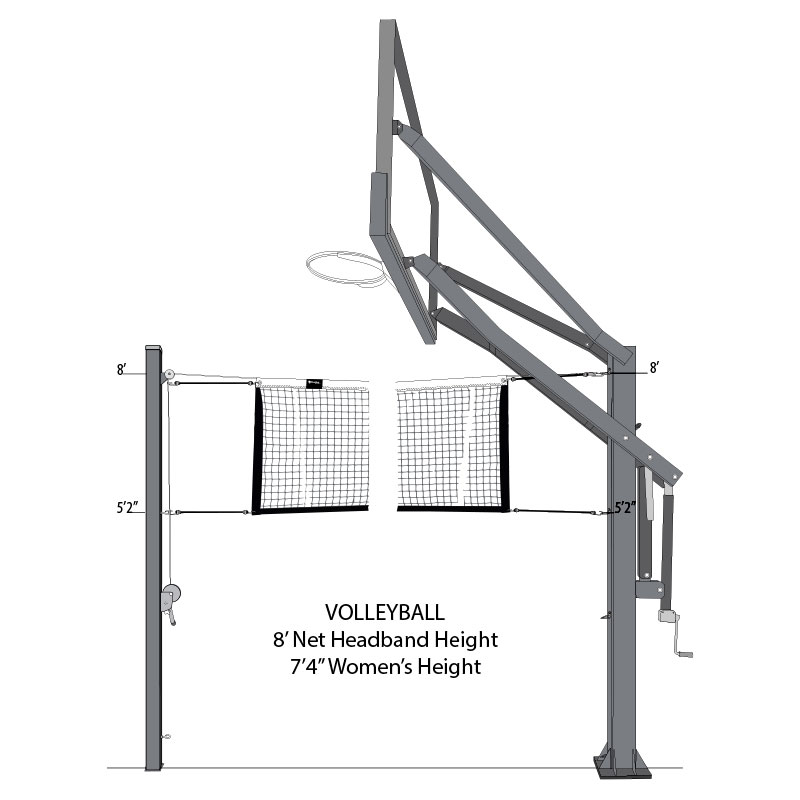

Poles are 10’6″ high and feature a continuous structured channel, so there are no external pressure points to damage the post’s finish. The built-in channel allows easy net height adjustment from 3′ pickleball to 8′ official volleyball play.

HARDWARE

The rugged net tensioning reel case and gears are constructed of heavy-duty steel. This simple reel assembly is easy-to-use and has smooth operation. The handle has a comfortable contoured grip and is removable to prevent unwanted tampering.

All hardware for a complete setup is provided, including (1) pulley, (6) eye hooks, bungee cords, Unicourt™ adjustable net, and ground sleeves.

Additional eye bolt brackets can be purchased to pre-set multiple net heights. This eliminates the need to constantly slide and re-tension the existing brackets, saving time and simplifying changes.

ADJUSTABLE NET

The adjustable Unicourt™ net is 34″ high and is available in (4) standard lengths. The length of the net should be 4′ shorter than the post spacing, leaving a 2′ gap on either side of the net. Contact us to order a custom size net to accommodate your court.

The high-quality, USA-made adjustable net is made from 1-3/4″ square mesh in 3mm heavy gauge solid core polyethylene. The netting material is unsurpassed for durability and weather resistance. The net headband is lock-sewn in 2-ply vinyl-coated polyester. The vinyl bottom tape and side pockets are polyester-based and won’t shrink, mildew, or rot when exposed to the elements.

The net has supporting side dowels and (4) bungee cords for an easy hook-on installation.

GROUND SLEEVES & INSTALLATION

The pole includes a 24″ long steel ground sleeve for semi-permanent installation.

The ground sleeve allows for easy removal and reinstallation of the pole, making it ideal for seasonal or temporary setups.

WARRANTY

5-Year Limited Warranty

FAQ

What is the height of the Aluminum Adjustable Net System?

The poles are 10’6″ long and go 2′ into the ground, leaving them 8′ 6″ above ground.

What if the standard net widths don’t accommodate my court size?

As the manufacturer, we can custom fabricate a net according to your dimensions. Don’t hesitate to get in touch with us for a custom quote.

How do I know what size net to purchase?

Our nets are fabricated 4′ shorter than post spacing, leaving a 2′ gap on either side of the net. This gap is for bungee cords to be used for attachment instead of lacing cords, which allows you to quickly and easily adjust the height of your net. Post spacing depends on your area, but the max spacing is usually 42′ apart. If space allows, many people set their posts at 42′ (Standard Tennis Post Spacing) and get a 38′ net. If you are still determining what size would work best for you, please feel free to reach out, and we can help you choose the best fit for your court.

Do you have to remove the net to adjust the height?

Yes, you unwind the top net cable to loosen it and unhook the (4) bungee cords. Then, reinstall the net at the desired location.
