Indoor or Outdoor Pickleball Court Divider System
Shop Pickleball Dividers from National Sports Products
Custom made to your specifications.
With Douglas® Pickleball Court Divider Systems there’s no more retrieving errant balls or getting interrupted by pickleballs from opposing courts. These court dividers are manufactured to your own court dimensions. Court divider panels are supported by 4’ high steel poles with your choice of mesh windscreen or divider netting. Read More
Description
Description
With Douglas® Pickleball Court Divider systems there’s no more retrieving errant balls or getting interrupted by pickleballs from opposing courts. These pickleball court dividers are manufactured to your own custom court dimensions. Court divider panels are supported by 4’ high steel poles with your choice of mesh windscreen or divider netting. Maximum recommended width is up to 40’ however, custom widths longer than 40’ are available upon special request. All Douglas® pickleball court barrier components are made with the best materials and are completely weather resistant, making this an ideal solution for both indoor and outdoor courts.
QUICK SPECIFICATIONS
- In-ground poles are 66” in length for 4’ above ground height.
- 2-7/8” OD poles are 8-gauge steel.
- Black baked-on powder coated finish.
- Complete with galvanized steel cable and hardware.
- Choose from windscreen or pylon netting divider panels.
- Maximum recommended panel length is 40.’
- All materials are completely weather-resistant for outdoor use.
- Optional wraparound pole padding.
- 24” aluminum ground sleeves are recommended.
HARDWARE
The standard in-ground support poles are 2-7/8” OD and are 66” in length for 4’ above ground height. These round poles and hardware collars are constructed from 8-gauge steel and are finished with a black baked-on polyester powder coat to resist rust and increase durability. Poles can be ordered up to 4’6” above ground height. 24” Aluminum ground sleeves are recommended.

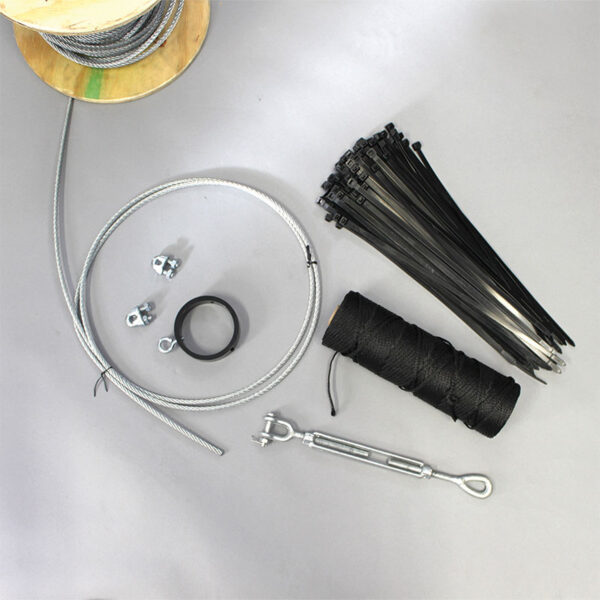

All hardware components for the tension cable system are comprised of galvanized steel for maximum strength and longevity. Hardware includes ¼” cable, cable clamps, turnbuckles, and attachment components.
DIVIDER PANELS
Divider panels are custom fabricated from either VCP MAX windscreen mesh or from #420 Knotless Pylon netting. Both divider panel options are sewn with a top headband pocket that conceals all the tension hardware for an attractive finish with no exposed components. The sides and bottoms of the divider panels have reinforced tape borders that are double sewn with 1-1/2” solid vinyl and complete with #2 brass grommets spaced evenly for easy installation.
-
- VCP MAX Windscreen
-
- #420 Knotless Pylon

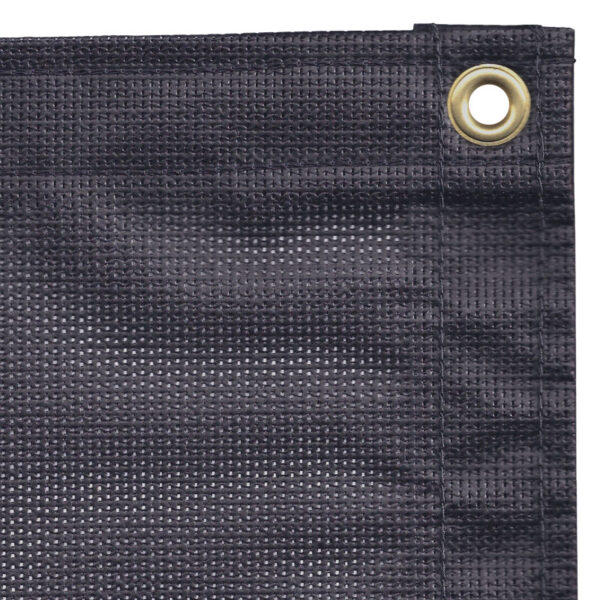

VCP MAX windscreen mesh material has a 4-year limited warranty and is available in black, dark green or open tournament blue. This mesh material offers a nice visual blockage and has an 85% windbreak. The material has great weather resistance and custom digital printing can be printed directly on the material. Added printing is a great opportunity to brand your facility or to add advertisements to support sponsors. VCP Max mesh material is most commonly used for indoor applications where wind stress is not a factor.

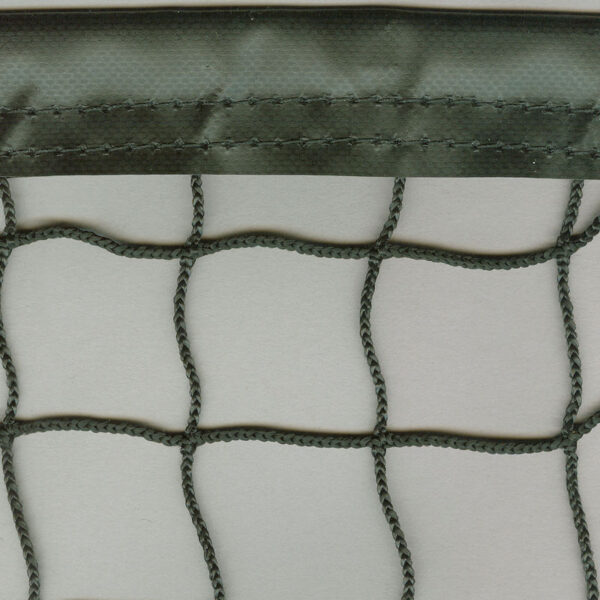

#420 Knotless Polypropylene (Pylon) is an ideal netting for court dividers. This lightweight, 1-1/2” square mesh boasts a 125# break strength and is completely weather treated to withstand the elements. Black knotless pylon is standard for pickleball court dividers but white is also available for indoor applications. Netting has a 4-year limited warranty. Pylon netting can be used both indoor and outdoor and is recommended for outdoor applications in lieu of mesh. The 1 ½” mesh will allow for ample wind flow reducing chance of material damage.
Every court is unique so please consult with one of our knowledgeable customer service representatives to discuss what options will work best for you!
PROTECTIVE PADDING

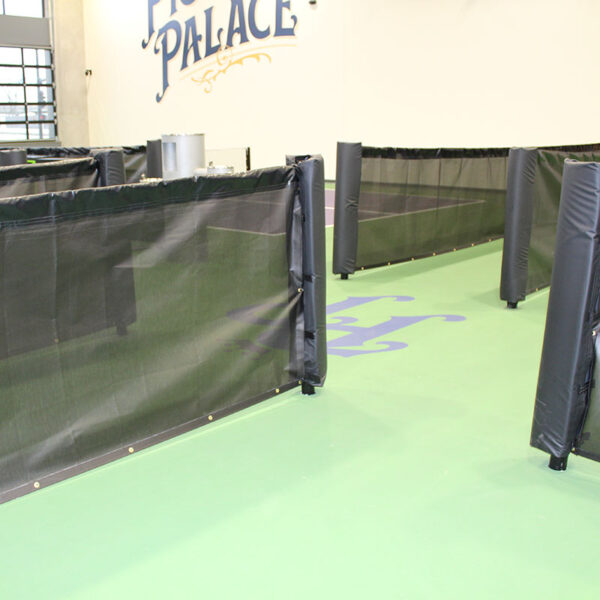

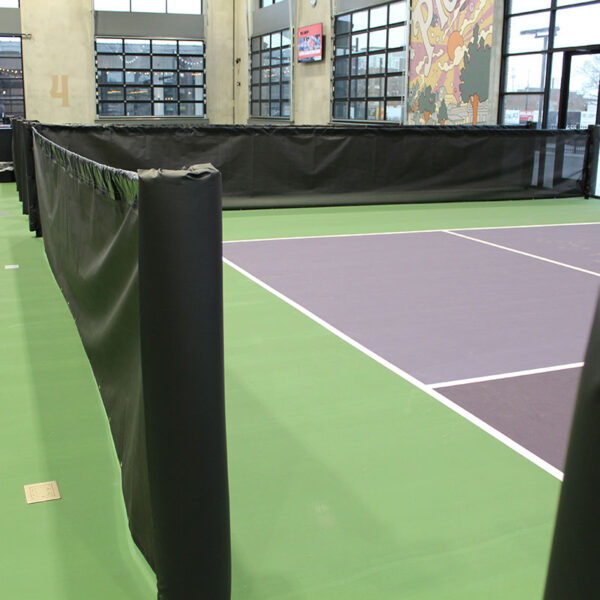

The optional pole padding is aesthetically pleasing and is recommended for player safety. The standard wraparound pole pad is 4’ high and is 17” wide to completely wrap around the pole. The pad is secured around the pole with double stitched Velcro straps. The pole padding wrap is comprised of two-inch-thick high impact foam that is wrapped in all-weather vinyl that is mildew and UV resistant. Black padding is standard; additional available colors include forest green, royal blue, navy, and red.
Complete system includes poles, divider panel, tension hardware. Ground sleeves and protective pole padding are optional.
Contact us for additional court configuration options add-on corner and center poles can be added to your court divider layout.
